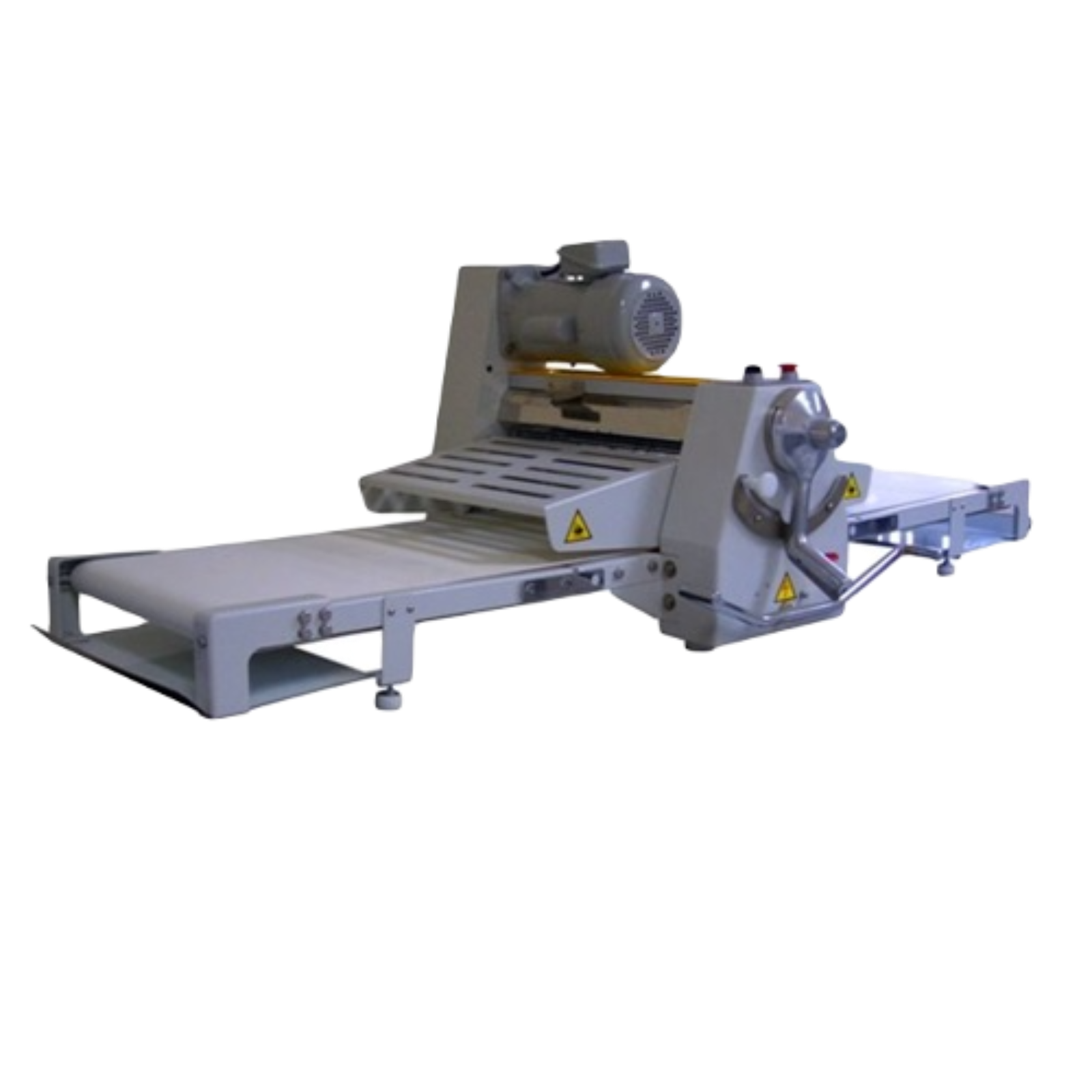

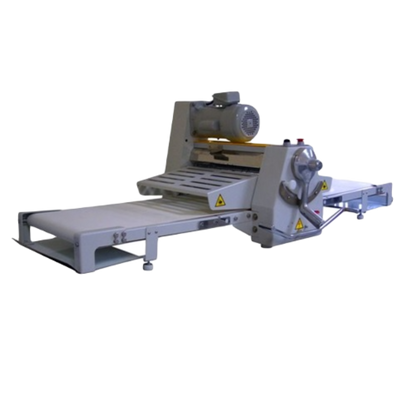

BakeMax BMCRS02 Heavy Duty Countertop 20.5 Inch Wide Reversible Dough Sheeter

BakeMax BMCRS02 Heavy Duty Countertop 20.5 Inch Wide Reversible Dough Sheeter

Regular price $14,600.00 USD
Regular price Sale price $14,600.00 USD
Sale Sold out
Shipping calculated at checkout.
The BakeMax BMCRS Series Countertop Reversible Sheeters are perfect for Bakeries, Pastry Shops, Hotels, Restaurants and more. They are suitable for sheeting and stretching Puff Pastry, Danish Bread, Fondant, Donut Dough, Croissants, Pie Crusts, Cookie Dough, Strudel, Marzipan, and Pizza Dough.
Features:
  • Constructed of Heavy-Duty Steel for Extra Durability and Longevity
  • Belt Dimensions: 20.5” Wide x 67” Long
  • Roller Size: 20.5” Wide x 3.5” Diameter
  • Safety Guards with Automatic Shut-Off when Lifted
  • Easy-To-Use Forward & Reverse Controls
  • Adjustable Thickness between 3-30mm
  • Overload Protection prevents motor from damage

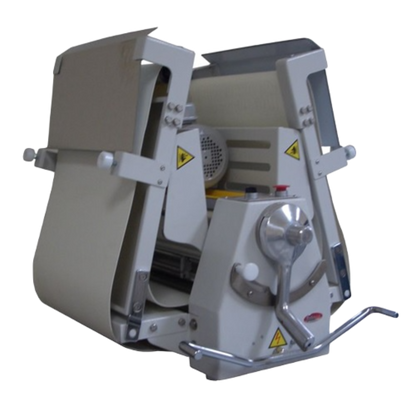

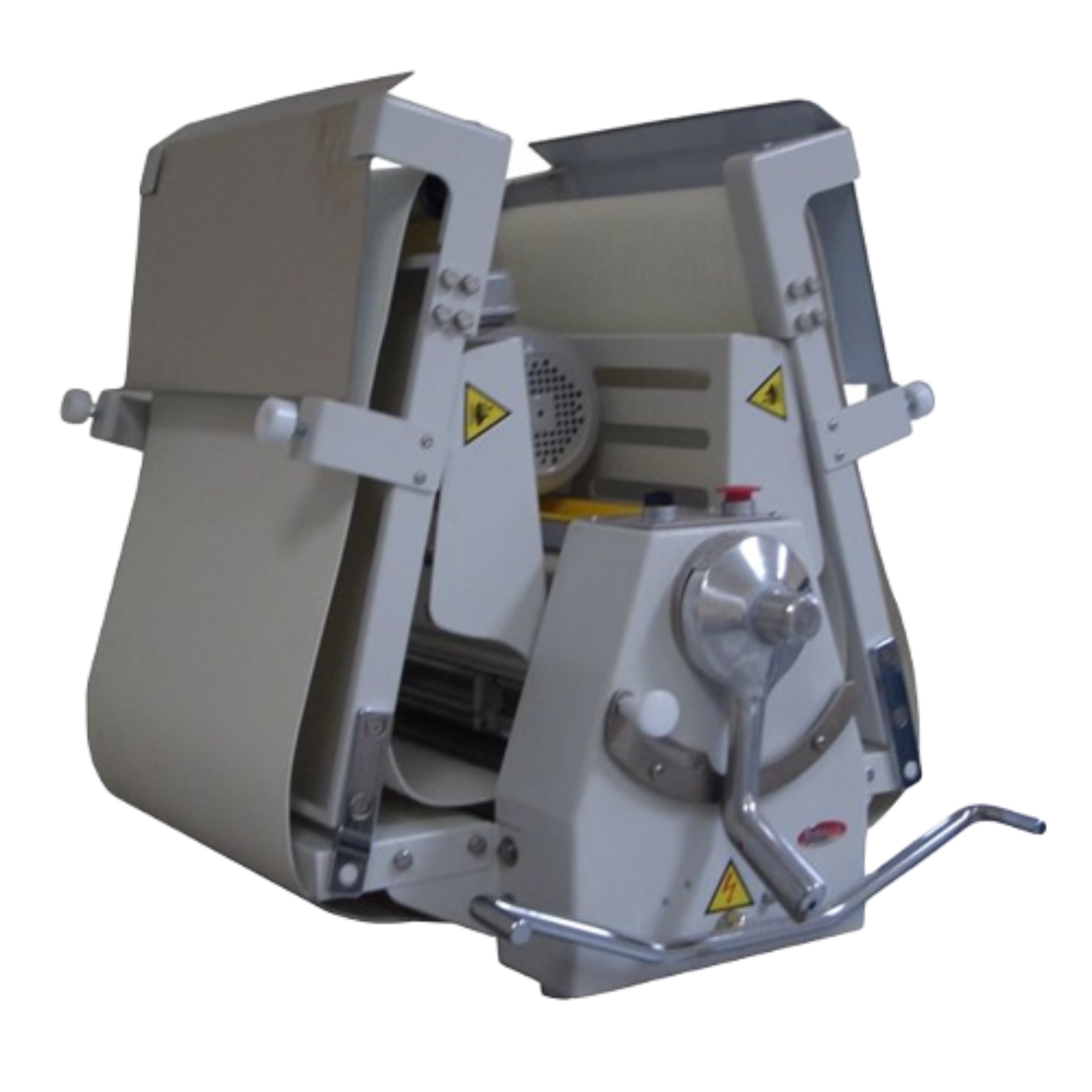

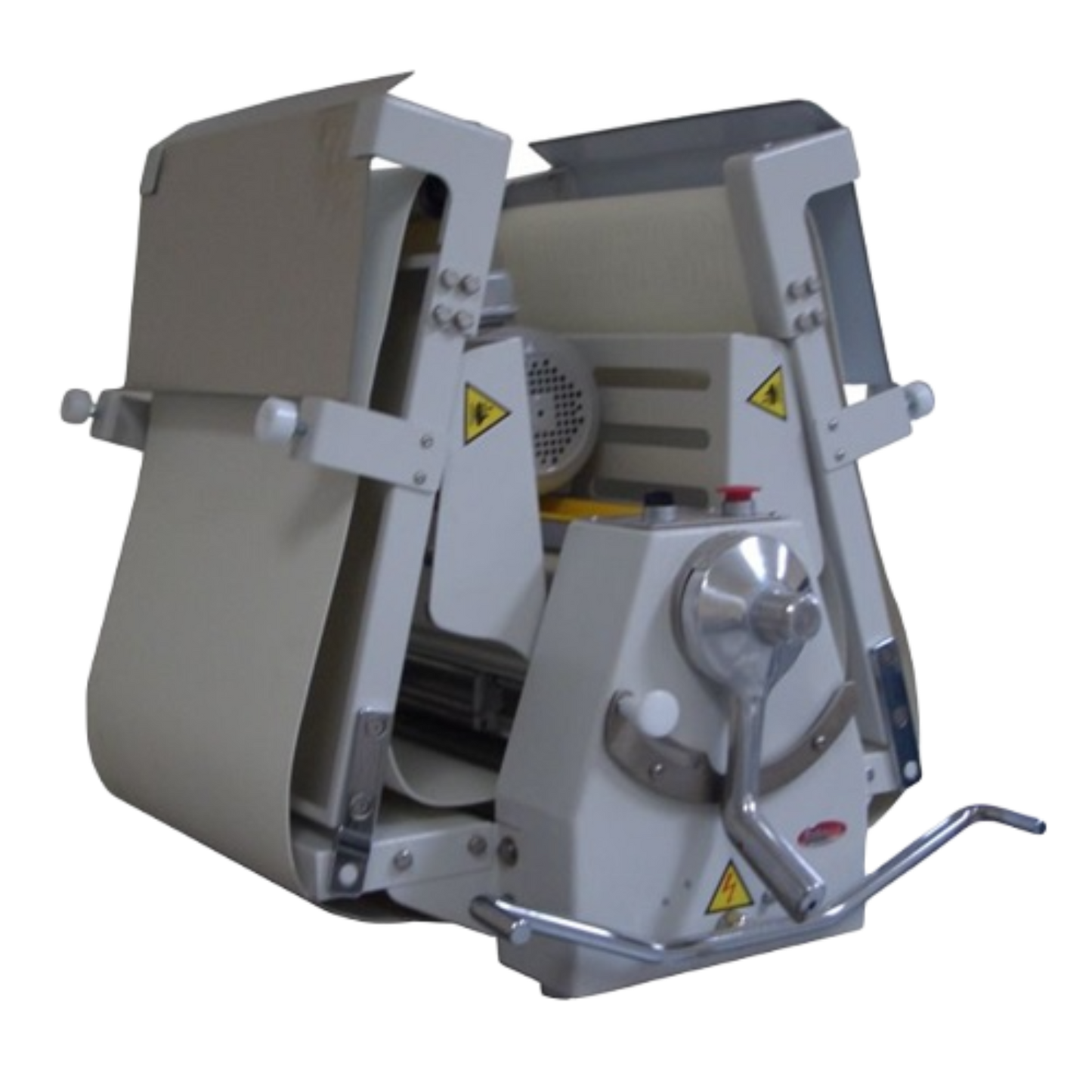

  • Sides Easily fold up to save room when not in use
  • Stainless Steel Rollers
  • Heavy Duty Non-Stick Scrapers to help prevent Dough from Sticking to the Rollers
  • Synchronized Infeed & Outfeed
  • Dough Catch Pans located on each end of the sheeter
  • 1-Year Limited Warranty
Product Details

Capacity: 5.3lbs / 20.5" Width

Construction: Steel

Controls Type: Manual

Design: Countertop

Number of Doors: 0

Type of Door: no door

Warranty Duration: One Year

Optional Accessories

1-Year Extended Warranty

Part #: WR00001

2-Year Extended Warranty

Part #: WR00002

Conveyor Belt without Ridges (Completely Flat)

Part #: CRS02/02/034A

Conveyor Belt with Ridges (Ridge follows grooves in Drive Roller Bearing Block)

Part #: CRS02/02/034B

Roller Tension Spring

Part #: CRS01/06/026

End Roller (Complete with Bearings)

Part #: CRS02/06/039

Drive Roller

Part #: CRS02/06/051

Upper V Dough Scraper (Strickle Sweep)

Part #: CRS02/06/063

Upper V Dough Scraper Springs (Torsion Springs)

Part #: CRS01/06/061

Lower Dough Scraper (Single Scraper)

Part #: CRS02/06/071

Lower Scraper Springs (Expansion Spring)

Part #: CRS01/06/075

Compression Spring for Directional Control Lever

Part #: CRS01/06/085

Compression Spring for Trigger Locking Lever

Part #: CRS01/06/103

Trigger Locking Lever for Thickness Adjustment Handle

Part #: CRS01/06/104


Dimensions and Weights

Product

Width: 71"

Depth: 36"

Height: 24"

Weight: 274 pounds

Shipping

Width: 32"

Depth: 42"

Height: 39"

Weight: 376 pounds


Electrical

Volts:

  •  120
Amps: 8
Watts: 375
Hz: 60
Phase:
  •  1Ph
Plug:
  •  NEMA 5-15P
    Warranty & Service

    BakeMax provides a 1-Year Limited Parts and Labor Warranty on most items. There are select items which carry a Limited 2-Year Warranty. An Extended Warranty is available on some products. Please contact us for details.

    The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.

    For all Warranty Claims, Proof of Purchase and/or Serial Number is required. Once the machine is approved, BakeMax will provide our customers with on-site Warranty Coverage on all equipment more than 100lbs. BakeMax assumes no responsibility for down time or loss of product. Repairs must be Pre-Authorized by BakeMax and have a Service Authorization Number issued prior to commencing Warranty Service.

    Warranty begins 10 days after shipping from warehouse; delays in installation which would extend the Warranty must be Approved. All equipment must be installed and connected by Qualified Professionals in accordance with the Manual Specification. Products shipped are to be inspected at time of delivery, the receiver is responsible for inspection.

    Any abuse or improper use of the equipment will void the warranty. This includes failure to follow all cleaning instructions, improper installation, improper maintenance, failure to follow capacity charts, improperly wired electrical connections. The Warranty does not apply to abuse, willful or accidental damage, or to products used for other than their intended purpose. Normal wear parts such as Accessories, Attachments, or Electrical Components such as Fuses, Bulbs, Elements, and Switches carry a 90-Day Warranty only.

    Bench Warranty (Machines Weighing 100 lb. or less)

    Once the machine is Approved for Warranty Service, if the machine requires Warranty work in less than 30 days of purchase date, BakeMax will pay all shipping charges. Once the machine is received and repaired it will be returned to the user at BakeMax expense. Freight Damages during return shipping is the responsibility of the owner of the machine.

    The following is not covered under the BakeMax Warranty:

    • Overtime Labor Rates are not covered by BakeMax.
    • All parts will be shipped via Ground Courier only; If Express Shipping is required, it will be the responsibility of the Customer or Dealer.
    • Travel for Warranty Service is covered up to 100 Miles / 160 Km Roundtrip, any further mileage will be the responsibility of the Customer or Dealer.
    • There is no on-site Warranty Service for Residential Addresses or addresses outside of the contiguous United States (Lower 48) or Canadian Provinces

    Machines sold outside of the contiguous United States (Lower 48), or Canadian Provinces will carry 1-Year Parts Warranty only.

The BakeMax BMCRS Series Countertop Reversible Sheeters are perfect for Bakeries, Pastry Shops, Hotels, Restaurants and more. They are suitable for sheeting and stretching Puff Pastry, Danish Bread, Fondant, Donut Dough, Croissants, Pie Crusts, Cookie Dough, Strudel, Marzipan, and Pizza Dough.
  • Constructed of Heavy-Duty Steel for Extra Durability and Longevity
  • Belt Dimensions: 20.5” Wide x 67” Long
  • Roller Size: 20.5” Wide x 3.5” Diameter
  • Safety Guards with Automatic Shut-Off when Lifted
  • Easy-To-Use Forward & Reverse Controls
  • Adjustable Thickness between 3-30mm
  • Overload Protection prevents motor from damage
  • Sides Easily fold up to save room when not in use
  • Stainless Steel Rollers
  • Heavy Duty Non-Stick Scrapers to help prevent Dough from Sticking to the Rollers
  • Synchronized Infeed & Outfeed
  • Dough Catch Pans located on each end of the sheeter
  • 1-Year Limited Warranty



Capacity: 5.3lbs / 20.5" Width

Construction: Steel

Controls Type: Manual

Design: Countertop

Number of Doors: 0

Type of Door: no door

Warranty Duration: One Year

1-Year Extended Warranty

Part #: WR00001

2-Year Extended Warranty

Part #: WR00002

Conveyor Belt without Ridges (Completely Flat)

Part #: CRS02/02/034A

Conveyor Belt with Ridges (Ridge follows grooves in Drive Roller Bearing Block)

Part #: CRS02/02/034B

Roller Tension Spring

Part #: CRS01/06/026

End Roller (Complete with Bearings)

Part #: CRS02/06/039

Drive Roller

Part #: CRS02/06/051

Upper V Dough Scraper (Strickle Sweep)

Part #: CRS02/06/063

Upper V Dough Scraper Springs (Torsion Springs)

Part #: CRS01/06/061

Lower Dough Scraper (Single Scraper)

Part #: CRS02/06/071

Lower Scraper Springs (Expansion Spring)

Part #: CRS01/06/075

Compression Spring for Directional Control Lever

Part #: CRS01/06/085

Compression Spring for Trigger Locking Lever

Part #: CRS01/06/103

Trigger Locking Lever for Thickness Adjustment Handle

Part #: CRS01/06/104


Product

Width: 71"

Depth: 36"

Height: 24"

Weight: 274 pounds

Shipping

Width: 32"

Depth: 42"

Height: 39"

Weight: 376 pounds


Volts:

  •  120
Amps: 8 Watts: 375 Hz: 60 Phase:
  •  1Ph
Plug:
  •  NEMA 5-15P

BakeMax provides a 1-Year Limited Parts and Labor Warranty on most items. There are select items which carry a Limited 2-Year Warranty. An Extended Warranty is available on some products. Please contact us for details.

The Warranty is not transferable and is limited to original installation of equipment sold by BakeMax for the original user.

For all Warranty Claims, Proof of Purchase and/or Serial Number is required. Once the machine is approved, BakeMax will provide our customers with on-site Warranty Coverage on all equipment more than 100lbs. BakeMax assumes no responsibility for down time or loss of product. Repairs must be Pre-Authorized by BakeMax and have a Service Authorization Number issued prior to commencing Warranty Service.

Warranty begins 10 days after shipping from warehouse; delays in installation which would extend the Warranty must be Approved. All equipment must be installed and connected by Qualified Professionals in accordance with the Manual Specification. Products shipped are to be inspected at time of delivery, the receiver is responsible for inspection.

Any abuse or improper use of the equipment will void the warranty. This includes failure to follow all cleaning instructions, improper installation, improper maintenance, failure to follow capacity charts, improperly wired electrical connections. The Warranty does not apply to abuse, willful or accidental damage, or to products used for other than their intended purpose. Normal wear parts such as Accessories, Attachments, or Electrical Components such as Fuses, Bulbs, Elements, and Switches carry a 90-Day Warranty only.

Bench Warranty (Machines Weighing 100 lb. or less)

Once the machine is Approved for Warranty Service, if the machine requires Warranty work in less than 30 days of purchase date, BakeMax will pay all shipping charges. Once the machine is received and repaired it will be returned to the user at BakeMax expense. Freight Damages during return shipping is the responsibility of the owner of the machine.

The following is not covered under the BakeMax Warranty:

  • Overtime Labor Rates are not covered by BakeMax.
  • All parts will be shipped via Ground Courier only; If Express Shipping is required, it will be the responsibility of the Customer or Dealer.
  • Travel for Warranty Service is covered up to 100 Miles / 160 Km Roundtrip, any further mileage will be the responsibility of the Customer or Dealer.
  • There is no on-site Warranty Service for Residential Addresses or addresses outside of the contiguous United States (Lower 48) or Canadian Provinces

Machines sold outside of the contiguous United States (Lower 48), or Canadian Provinces will carry 1-Year Parts Warranty only.
